Product Introduction

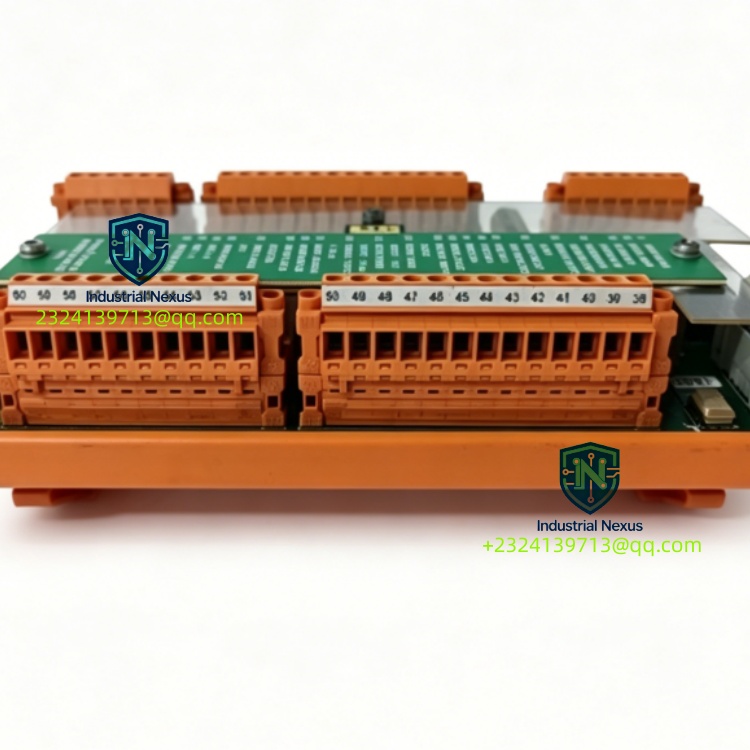

The ABB CMA132, part number 3DDE300412, is a relay terminal interface board within ABB SYNPOL D generator control and protection system. It serves as the signal wiring bridge between field sensing circuits and the main control unit, transmitting voltage, current, relay status and protection feedback signals. With galvanic isolation design, it separates high-power field circuits from low-voltage logic circuits to eliminate ground loop interference. Manufactured with industrial PCB and reliable electronic components, this board maintains stable signal transmission under severe power plant conditions including strong electromagnetic interference, mechanical vibration and temperature fluctuation. Widely used in thermal power, hydropower generator sets and large synchronous motor control systems. It is an essential spare part for SYNPOL D rack maintenance, signal board replacement and power automation system renovation.

Content Details

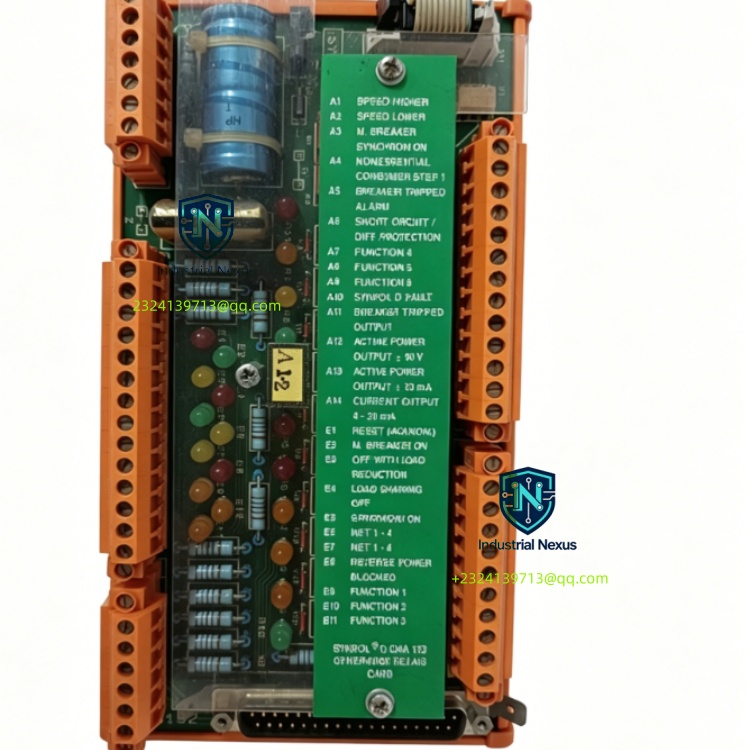

Brand: ABB Model: CMA132 Part No: 3DDE300412 Product Type: Relay Terminal Interface Board Series: SYNPOL D Generator & Motor Control System The ABB CMA132 3DDE300412 terminal board is designed for installation inside SYNPOL D control rack. Its primary task is to receive multi-channel analog and binary signals from generator transformers, protection relays and field sensors, then forward these signals to main control boards such as CMA120 and CMA131. Galvanic isolation is built into each signal channel to prevent high voltage surge from damaging the core control logic, greatly improving system safety. This board processes multiple monitoring and protection signals in real time. It ensures accurate delivery of generator voltage, current, power and relay trip signals, which are critical for excitation regulation and generator protection logic. Every module undergoes full functional test and aging screening before delivery to reduce failure risk during long-term continuous operation. Optimized EMC design filters electromagnetic noise generated by transformers and high-power switchgear in power stations. It adopts plug-in rack structure, directly inserted into SYNPOL D backplane. Standard terminal blocks simplify field wiring and facilitate quick replacement during maintenance. LED indicators on the front panel show channel status and signal faults, helping maintenance engineers quickly locate wiring or signal abnormalities and cut downtime. It works in coordination with other SYNPOL D series modules to build a complete generator protection, excitation control and power management system. Common application scenarios include steam turbine generator control, hydro generator protection, large industrial synchronous motor control and marine generator power management. When the original relay terminal interface board is damaged, CMA132 3DDE300412 can be used as direct replacement to restore signal acquisition and protection functions of the whole generator control system. This board meets power industry specifications and international industrial safety standards. Compact rack layout and durable circuit design support long-term 24/7 operation. Whether for spare stock of power station maintenance or component procurement for power automation retrofit projects, the ABB CMA132 3DDE300412 relay terminal board guarantees safe and reliable signal transmission for your SYNPOL D control rack.
