Product Introduction

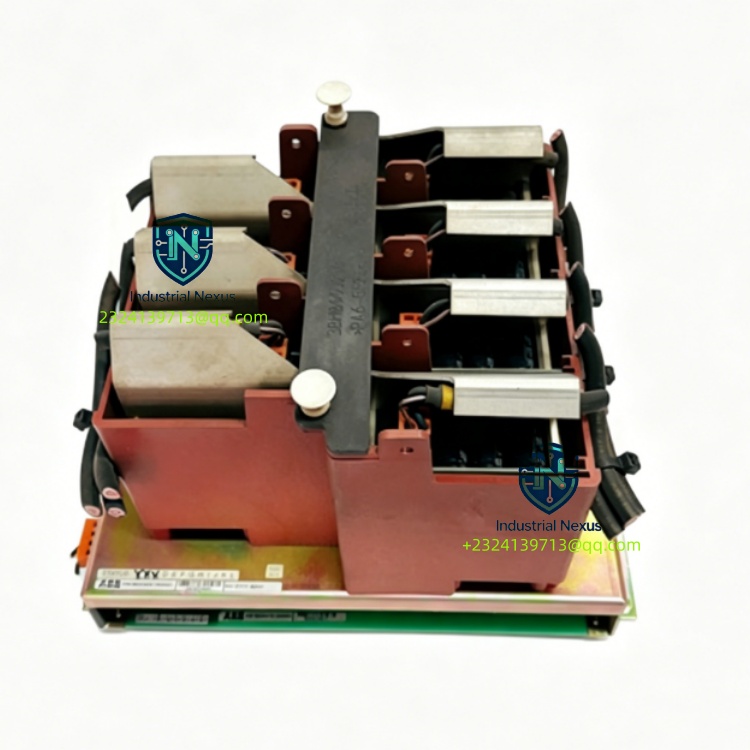

The ABB KUC711AE 3BHB004661R0101 is a high reliability gate unit power supply module for ABB medium voltage converters and UNITROL generator excitation systems, widely applied in ACS1000 series MV drives. It provides isolated stable power for IGCT/IGBT gate drive units, featuring high voltage galvanic isolation, overvoltage, undervoltage, overheat and short-circuit protection. Fiber-optic signal transmission separates low voltage control circuit and high-power stage to reduce electromagnetic interference. It is an essential spare part for power plant excitation and medium voltage variable speed drive systems.

Content Details

ABB KUC711AE 3BHB004661R0101 converts input power into isolated gate driving power for power semiconductor devices. It receives optical trigger signals from main control board and outputs driving voltage to turn on/off power devices. Built-in multi-protection functions detect abnormal operating status and send fault alarm signals to upper controller. It delivers fast response and high isolation performance to suppress interference from high-power circuits. Adopting pluggable rack-mounted design, it supports continuous operation under strong electromagnetic interference and vibration in power plants and heavy industrial sites. KUC711AE 3BHB004661R0101 is used for maintenance replacement of ABB ACS1000 medium voltage drives and UNITROL excitation racks. Before shipment, each unit undergoes full functional test and thermal aging inspection to eliminate hidden defects and guarantee reliable long-term continuous operation.

Tags: 3BHB004661R0101 ABB gate unit power supply KUC711AE
