Product Introduction

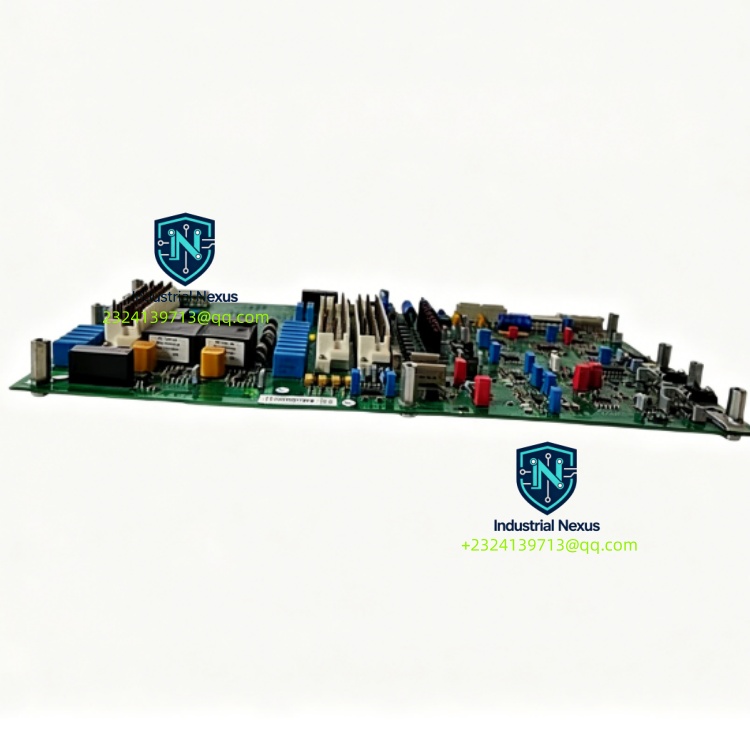

 The ABB PFSK142 3BSE006505R1 is an original rack-mounted control board developed for ABB Advant OCS and 800xA distributed control systems. It undertakes signal conditioning, data conversion and backplane communication tasks between field instruments and main controllers. With high precision signal acquisition and built-in diagnostic functions, this board delivers stable performance for continuous process control in heavy industrial environments.

Content Details

ABB PFSK142 3BSE006505R1 is a vital core spare part designed for ABB DCS automation racks. This control board is responsible for processing multiple analog and digital field signals, completing high-fidelity data conversion, and exchanging real-time data with the main controller via the system backplane bus. It adopts reliable signal isolation technology to suppress electromagnetic interference generated by on-site motors, valves and other heavy-load equipment, effectively avoiding signal distortion and ensuring accurate data transmission required by closed-loop process control.

Equipped with comprehensive hardware self-diagnosis and watchdog monitoring functions, the board continuously tracks its working status, each channel signal quality and backplane communication link during operation. Once circuit damage, signal disconnection, channel overload or communication failure occurs, it immediately triggers alarms and uploads fault logs to the upper control host, helping technicians quickly locate and resolve faults and reduce system risk. Manufactured with industrial-grade electronic components and anti-corrosion conformal coating protection, this board owns excellent shock resistance, vibration resistance and EMC performance. It can maintain stable operation under wide temperature fluctuation and adapt to control cabinet environments with dust, humidity and strong electromagnetic interference in power generation, chemical processing, metallurgy, pulp and paper, oil & gas industries.

This rack-type PCB board can be directly inserted into standard slots of ABB DCS cabinets. It supports convenient disassembly and replacement without complex system reconfiguration, greatly shortening equipment downtime during routine overhaul and emergency maintenance. It is widely deployed in continuous production process industries for field signal acquisition, logic processing and system data interaction. Before delivery, each ABB PFSK142 3BSE006505R1 undergoes strict full functional testing, multi-channel signal verification and aging inspection to screen out unstable hardware, guaranteeing consistent and reliable 24-hour long-time continuous operation for industrial automation control projects.

Tags: ABB PFSK142 3BSE006505R1 ABB control board
