Product Introduction

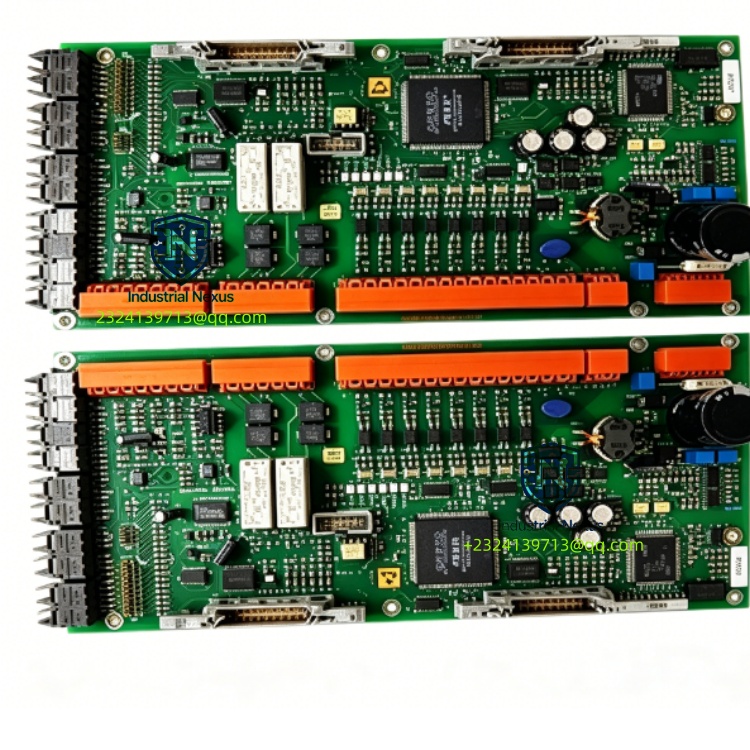

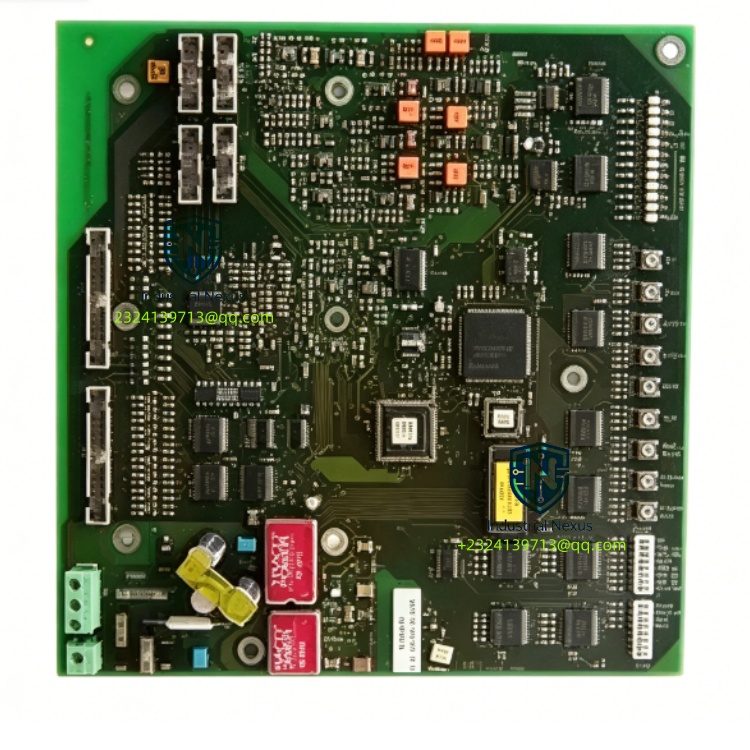

The ABB UNS2882A 3BHE003855R0001 is an original rack-mounted high-precision measurement and interface board designed for ABB UNITROL generator excitation systems. It is responsible for sampling excitation current, voltage and generator operating parameters, completing signal conditioning and data transmission between field measuring loops and the main excitation controller. Featuring high accuracy signal acquisition, electrical isolation and built-in fault monitoring, this board delivers reliable measurement data for closed-loop excitation regulation, supporting safe and stable operation of synchronous generators in power plants.

Content Details

ABB UNS2882A 3BHE003855R0001 is a critical core spare part of ABB UNITROL excitation control rack. This measurement interface board receives raw analog signals from CT and VT measuring circuits, including excitation winding current, DC bus voltage and generator terminal signals. It carries out filtering, amplification and galvanic isolation processing for these sampled signals, then transmits processed high-precision measurement data to the main control unit through backplane bus for AVR calculation and excitation adjustment. Isolation circuits effectively cut off high voltage surge and strong electromagnetic interference from power loops, preventing damage to low-voltage control circuits and improving measurement accuracy under noisy power cabinet environments.

Equipped with comprehensive self-diagnosis and watchdog monitoring mechanism, the board continuously checks signal channel integrity, input power quality, internal circuit status and communication link during long-term continuous operation. Once detecting signal disconnection, channel overload, power failure or communication timeout, the module immediately triggers alarm signals and stores fault logs for maintenance review. Engineers can rapidly locate faulty channels according to alarm information without full generator shutdown, reducing the risk of unexpected unit trip and production loss. Manufactured with industrial-grade electronic components and anti-corrosion conformal coating treatment, this board has outstanding shock resistance, vibration resistance and excellent EMC performance. It can operate reliably in a wide temperature range and adapt to control cabinet environments with heavy electromagnetic interference, dust and humidity in thermal power plants, hydropower stations and industrial captive power plants.

This Eurocard plug-in board can be directly inserted into UNITROL rack slots. Its modular structure supports convenient plug-and-play replacement. Only simple function verification is required after swapping, which greatly shortens equipment downtime during routine overhaul and emergency maintenance. Widely used for generator excitation parameter measurement, voltage and current monitoring and closed-loop excitation control. Before shipment, each ABB UNS2882A unit undergoes full functional testing, signal precision calibration and aging inspection, eliminating hidden hardware defects and guaranteeing stable 24-hour continuous operation for power station excitation control projects.

Tags: UNS2882A 3BHE003855R0001 ABB excitation measurement board
