Product Introduction

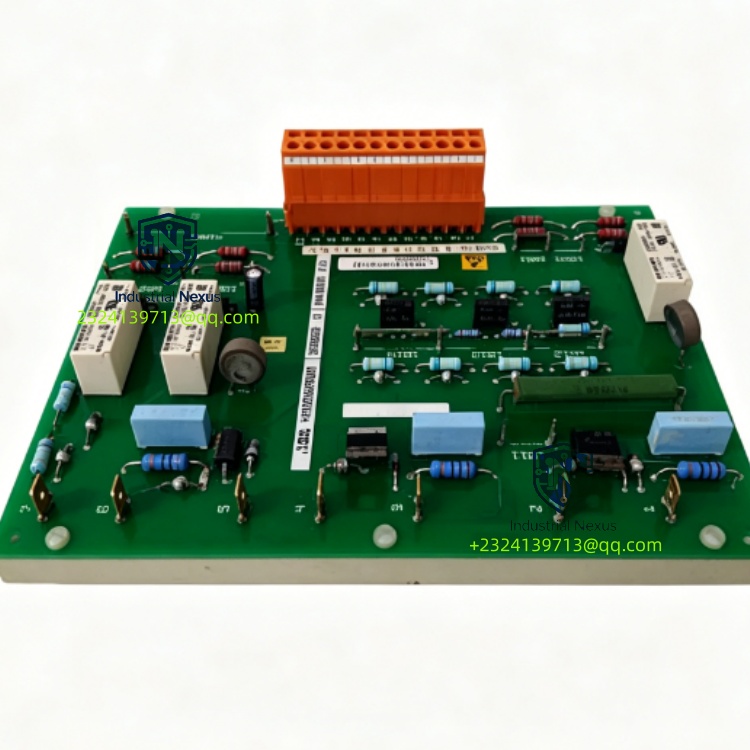

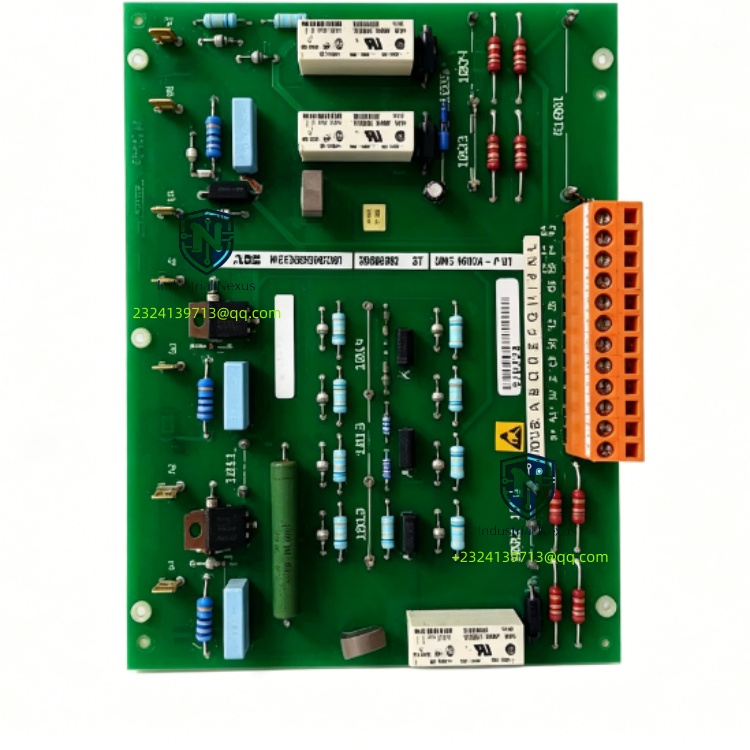

The ABB UNS0007A-P V1, with part numbers HIEE305098R0001 and HIEE410730P201, is an original high-performance firing pulse control board developed for ABB UNITROL series generator static excitation systems. It generates accurate and isolated thyristor firing pulses to control rectifier bridge power conversion, realizing stable excitation current regulation for synchronous generators. Featuring multi-channel pulse output, galvanic isolation and built-in hardware monitoring, this board guarantees fast response and high reliability for power plant generator excitation control under heavy electrical interference.

Content Details

ABB UNS0007A-P V1 HIEE305098R0001 HIEE410730P201 serves as a critical core spare part of ABB UNITROL P and UNITROL1000 excitation systems. This firing pulse board is responsible for receiving phase angle control commands from the main controller, then producing six independent optically isolated trigger pulses to drive thyristors inside the power rectifier bridge. It precisely adjusts firing angles from 0° to 180°, accurately regulating DC excitation current supplied to generator rotor windings, which directly stabilizes generator output voltage and reactive power in power station operation. The board adopts optical isolation design between control circuit and high-power circuit, effectively cutting off high voltage interference and preventing surge damage to the low-voltage control side. It is equipped with comprehensive self-diagnosis and watchdog monitoring functions, continuously tracking pulse output status, power supply condition, phase sequence signals and internal circuit health during long-term running. Once detecting pulse loss, power failure, phase abnormality or circuit fault, the module will trigger alarm signals and send fault information to upper control system promptly. This helps maintenance engineers quickly locate faults without full system shutdown and reduces risk of generator trip. Manufactured with industrial-grade electronic components and conformal coating protection, this firing board delivers outstanding shock resistance, vibration resistance and strong EMC performance. It can operate reliably in high electromagnetic interference environments inside power converter cabinets of thermal power, hydropower and other power generation industries. It adopts standard rack mounting design for simple installation and replacement. Modular structure supports quick swap during equipment overhaul or emergency breakdown, greatly shortening maintenance downtime. Widely used in generator excitation control and power conversion closed-loop regulation scenarios. Before shipment, every ABB UNS0007A-P V1 unit undergoes complete function test, pulse waveform verification and aging inspection, screening hidden hardware defects to ensure stable 24-hour continuous operation for power plant excitation control projects.
